Teraflex Rear Lower Control Arms JK

Additional information

MFG Part Number

1415540

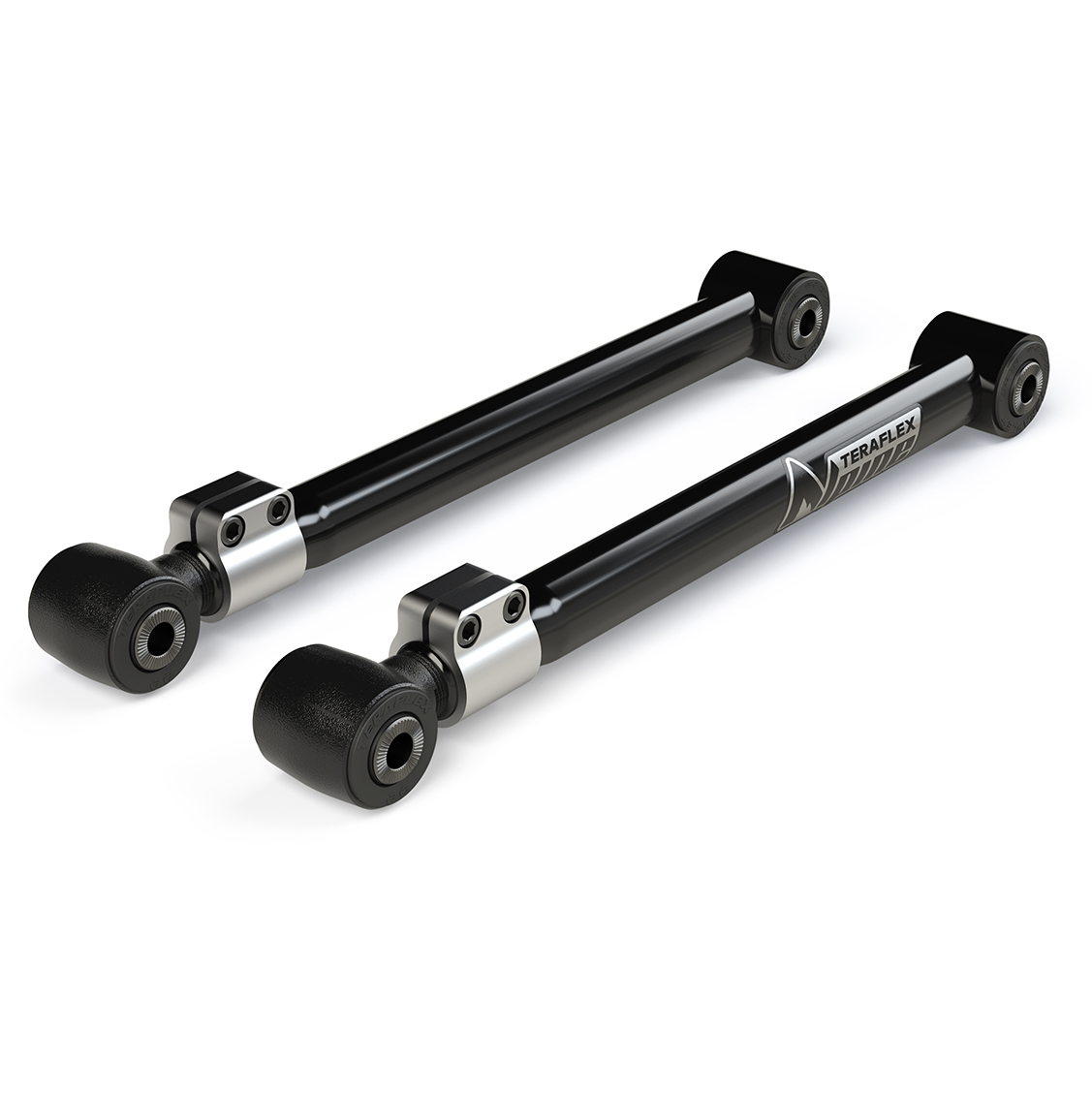

TeraFlex JK: Alpine Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 2-4” lifts. Bolts to the factory control arm mounting brackets. Can be added to any existing suspension lift.



High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.

$357.99

1 in stock

1 in stock

JK ALPINE SHORT CONTROL ARMS

  • Adjustable Alpine Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-4” lift kits
  • Alpine Control Short Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
  • Bolts to the factory control arm mounting brackets
  • Install and drive simple bolt-on installation – no welding required



JK ALPINE CONTROL ARMS (ALL)

  • Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
  • Full range of movement will not restrict articulation or flex off-road
  • High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality.
  • Zero maintenance forged threaded joints for smooth quiet flex
  • Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
  • Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
  • TeraFlex Lifetime Warranty against defects

INCLUDES

Alpine Short Control Arms – Adjustable:

  • Driver Rear Lower (# 1141541)
  • Passenger Rear Lower (# 1141551)



VEHICLE FITMENT INFO

Fits:

  • JK Wrangler (2-door)
  • JK Wrangler Unlimited (4-door)
  • 2-4” Lift

Short Control Arm Specs:

  • Tube Diameter & Wall: 1-5/8” x 0.157” (42mm x 4mm)
  • Factory Length = 19-3/4”
  • Min. Length = 19-13/16”
  • Max. Length = 21-1/16”
  • Both Ends = 9/16” (14mm) Bolt
  • Thread = 1-1/4”-12 UNF
  • Both Bushings = # 611011



PRODUCT NOTES

  • Alignment required.



CONFIGURATIONS

  • Alpine Short Control Arms – Adjustable
  • 8-Arm (# 1415610)
  • Front Upper (# 1415520) – pair
  • Driver Front Upper (# 1141521)
  • Passenger Front Upper (# 1141531)
  • Replacement Bushings (Both Ends: # 611014)
  • Front Lower (# 1415500) – pair
  • Driver Front Lower (# 1141501)
  • Passenger Front Lower (# 1141511)
  • Replacement Bushing (Both Ends: # 611011)
  • Rear Upper (# 1415560) – pair
  • Driver Rear Upper (# 1141561)
  • Passenger Rear Upper (# 1141571)
  • Replacement Bushing (Both Ends: # 611012)
  • Rear Lower (# 1415540) – pair
  • Driver Rear Lower (# 1141541)
  • Passenger Rear Lower (# 1141551)
  • Replacement Bushing (Both Ends: # 611011)



INSTALL TIME

2 Hours
