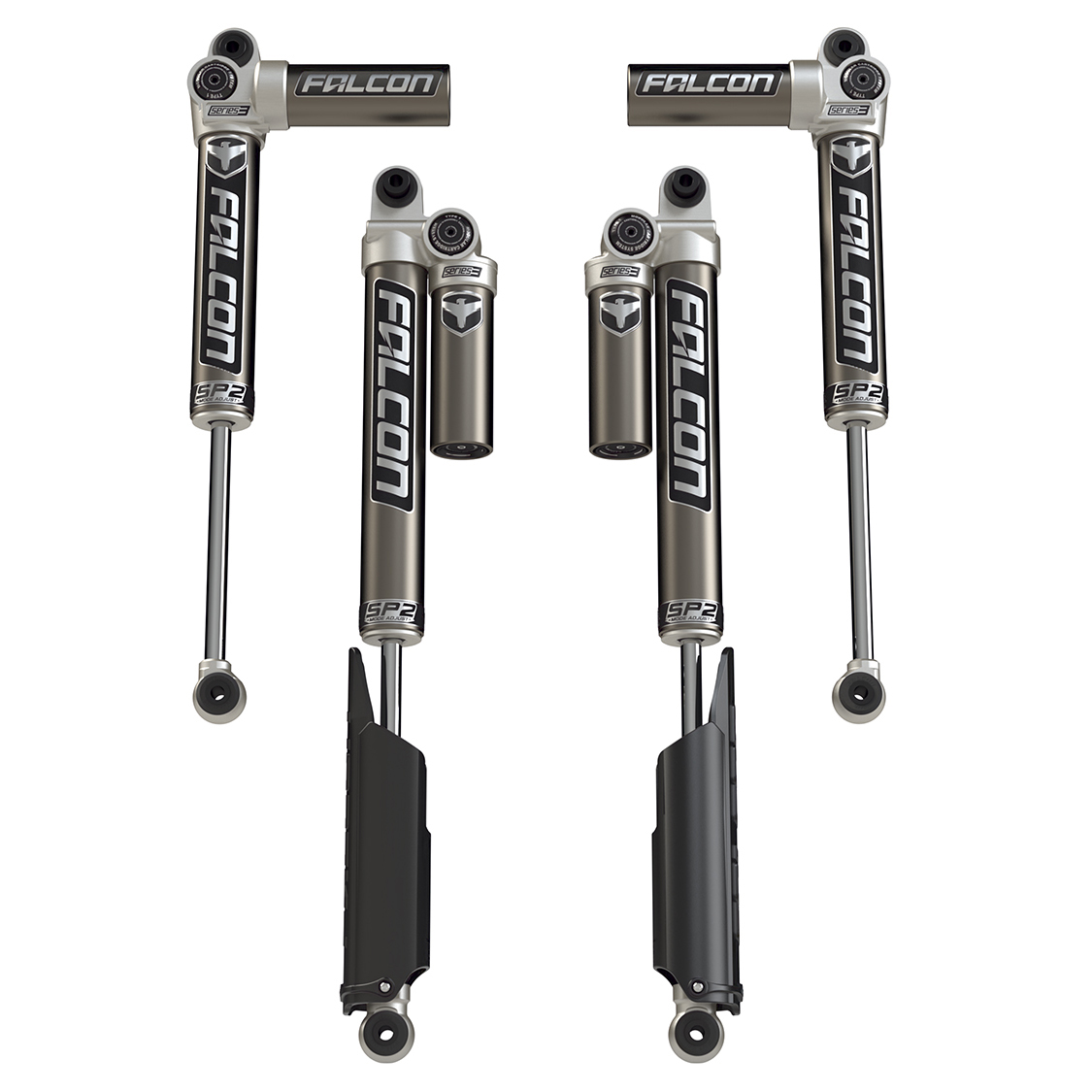

Falcon JL 4dr: Falcon SP2 3.1 Piggyback Shock Kit

Additional information

For

(2-4.5” Lift)

MFG Part Number

11-02-31-400-200

Falcon SP2 3.1 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on road, while the increased compression damping provides more aggressive off-road handling. Our unique Mode Adjust feature tunes compression and rebound for Soft or Performance settings. SP2 3.1 Shocks have been optimized for on- and off-road driving.

“High-Value Performance” is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily-driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs. Falcon Performance Shocks by TeraFlex.

$1,507.99

Out of stock

Out of stock

SP2 3.1 PIGGYBACK

• SP2 3.1 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on road, while the increased compression damping provides more aggressive off-road handling
• Optimized tuning for on- and off-road driving
• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings
• Ideal for daily-driven Jeeps as well as the serious enthusiast wanting a consistent, controlled feel through all driving conditions
• Upgradeable to 3.5 aDAPT, 3.5 e-Adjust, or 3.3 Fast Adjust via Cartridge Upgrade Kits for quick compression adjustments. Sold separately

JL

• JL corner-specific shock absorber w/ race-inspired performance
• Front lower offset eyelet design provides maximum shock body to frame clearance during articulation
• Rear roost guards prevent shock shaft damage from rocks kicked up by the tires
• SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings

PIGGYBACK

• Piggyback design increases oil and gas capacity for reduced heat
• Flows 6x more oil than restrictive reservoir hose designs
• Eliminates common leakage issues found in banjo and swivel fittings
• Front shocks’ unique horizontal piggyback reservoir increases tire clearance
• Cartridge Upgrade Kits are available separately — contact customer service for details

SP2 MODE ADJUST

• Choose between Soft and Performance modes during install
• Tunes both compression and rebound
• Soft mode allows a partial bypass of the main piston for a softer ride
• During aggressive driving, Soft mode retains performance tuning for optimal handling
• Soft mode recommended for rough terrain/surfaces and cold weather
• Performance mode recommended for max on- and off-road handling, stability, and control

• Vehicle-specific shock absorbers
• Race-inspired performance for increased vehicle stability
• Improved dynamic roll control and low-speed damping
• Dramatic improvement in on-road comfort and off-road performance
• Optimized fitment for unobstructed suspension travel and articulation
• 2.3” shock body provides optimal performance
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth honed internal shock body surface for long-term performance
• 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides a wide range of adjustment on adjustable shocks
• Hard anodized 6061-T6 aluminum alloy billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
• VOD reduces shock bottoming at full compression or over uneven terrain
• OGS (Oil/Gas Separator) prevents cavitation
• High-viscosity, full synthetic Red Line shock oil for consistent performance across all temperatures
• Synthetic formula also contains special anti-wear and lubricity agents
• 1,000-hour salt spray corrosion resistance test on all hardware
• Serviceable and rebuildable (factory serviced)
• Designed, engineered, and assembled in-house from domestic and globally sourced components
• Patented design
• 3-year warranty

INCLUDES

• SP2 3.1 Piggyback Shocks – all 4
• Rear Roost Guards – pair
• All necessary hardware

VEHICLE FITMENT INFO

• JL Wrangler Unlimited (4-door)

• 2-4.5” Lift

• Does NOT fit EcoDiesel models

PRODUCT NOTES

• Does NOT fit EcoDiesel models.
• Upgradeable to 3.5 aDAPT, 3.5 e-Adjust, or 3.3 Fast Adjust via Cartridge Upgrade Kits for quick compression adjustments. Sold separately — contact customer service for details.
• Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders – See instructions for proper configuration for your application.
• May require 2” Bump Stop Strike Pad Extension Kit (# 1959500) and/or 0.5” Bump Stop Strike Pad Shim Kit(s) (# 1959300).

INSTALL TIME

1.5 Hours
