SPORT ST3

• Lift Height: 3.5”
• Sport/Sahara Fenders: 35” Tires
• Rubicon Fenders: 35-37” Tires
• Front Control Arm Sport Frame Brackets balance front caster and pinion angles on 2.5-4.5” lift kits
• Bolt-on Sport Frame Brackets install between factory frame mounts and stock front upper and front lower control arms

STREET & TRAIL

• Delivers true Street & Trail (ST) performance
• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced NVH
• Track Bar Axle Bracket(s) improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling
• Front and Rear Progressive Bump Stops protect occupants and the vehicle from hard suspension bottoming
• Features Front Sway Bar Quick Disconnects
• Full range of movement for off-road flex and articulation
• Install and drive, simple bolt-on installation – no welding required
• TeraFlex Limited Lifetime Warranty against defects
• (See INCLUDES for included components)

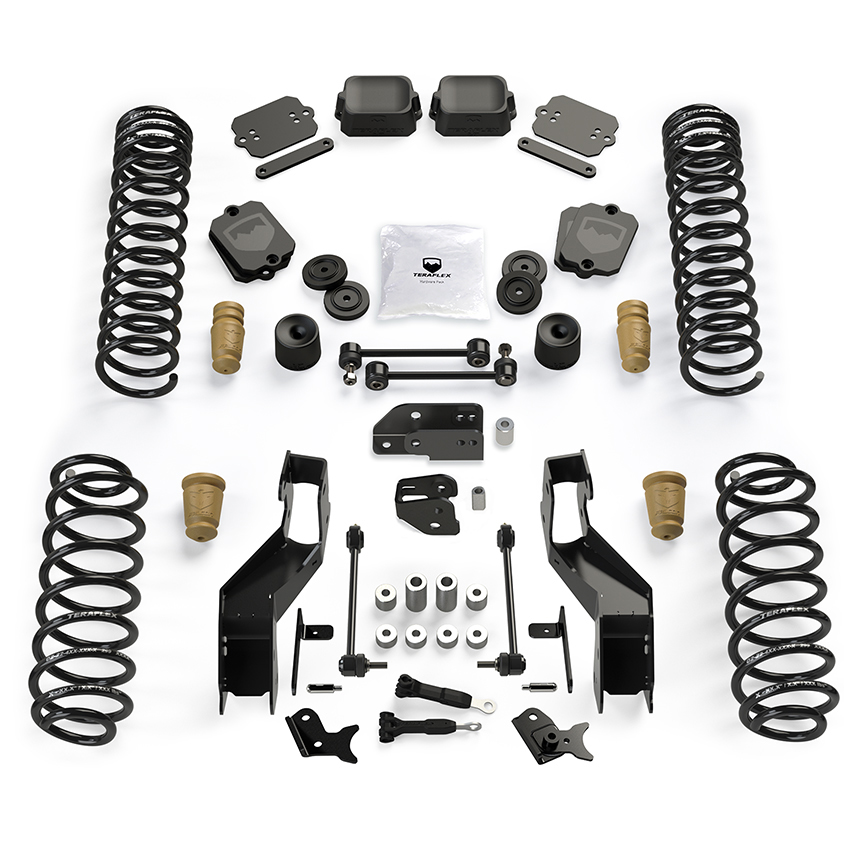

INCLUDES

• 3.5” Lift Coil Spring Kits (JL4 Front: # 1863000 & JL4 Rear: # 1863100)
• Sport Frame Bracket Kit – Front Control Arm (2.5-4.5” Lift) (# 1938125)
• Front Track Bar Axle Bracket (2.5-3.5” Lift) (# 1953250)
• Rear Track Bar Axle Bracket (2.5-4.5” Lift) (# 1953600)
• Progressive Bump Stop Kit – Front & Rear (0-4.5” Lift) (# 1959200)
• 2” Bump Stop Strike Pad Extension Kit – Front & Rear (# 1959500)
• 0.5” Bump Stop Strike Pad Shim Kit – Front & Rear (# 1959300)
• Front Sway Bar Quick Disconnect Kit (0–6” Lift) (# 1764000)
• 11.5” Rear Sway Bar Link Kit w/ Swivel Stud (2.5-4.5” Lift) (# 1764300)
• Front Brake Line Anchor Kit (# 1101255)
• All necessary hardware
• And more

VEHICLE FITMENT INFO

Fits:

• JL Wrangler Unlimited (4-door)

Specs:

• Lift Height: 3.5”

Max Tire Diameter:

• Sport/Sahara Fenders: 35” (w/ 3” front & 2.5” rear bump stops)
• Rubicon Fenders: 35” (w/ 2” front & 2” rear bump stops)
• Rubicon Fenders: 37” (w/ 2.5” front & 3” rear bump stops)

PRODUCT NOTES

• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1057000) for stock wheels – NOT INCLUDED.
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards to fit 35” or larger tires.
• Sport/Sahara Fenders Require 3” Front and 2.5” Rear Bump Stop Extensions and Shims (INCLUDED) to fit 35” tires.
• Rubicon Fenders require 2” Front and 2” Rear Bump Stop Extensions (INCLUDED) to fit 35” tires.
• Rubicon Fenders require 2.5” Front and 3” Rear Bump Stop Extensions and Shims (INCLUDED) to fit 37” tires.
• Alignment required.
• Sport Frame Bracket HD Reinforcement Kit (# 1938115) beefs up the Front Control Arm Sport Frame Brackets. Recommended, but not required.
• Requires longer shocks (NOT INCLUDED) – Falcon Performance Shocks recommended.)

INSTALL TIME

9.5 Hours (10.5 Hours w/ shocks)
