SPORT ST2

• Lift Height: 2.5”

• Max Tire Diameter: 35”

• Preset Sport Control Arms (front lower) balance front caster angle and pinion angles to restore suspension geometry on 2.5” lift kits

• Front and rear Progressive Bump Stops provide progressive compression during high-speed suspension movement

STREET & TRAIL

• Delivers true Street & Trail (ST) performance

• Dependable performance w/ zero worries

• Positive, responsive handling w/ reduced NVH
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.

• Adjustable Front Track Bar (2.5”+) and Rear Track Bar Bracket (2.5”+) improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling

• Full range of movement for off-road flex and articulation

• Install and drive, simple bolt-on installation – no welding required

• TeraFlex Limited Lifetime Warranty against defects

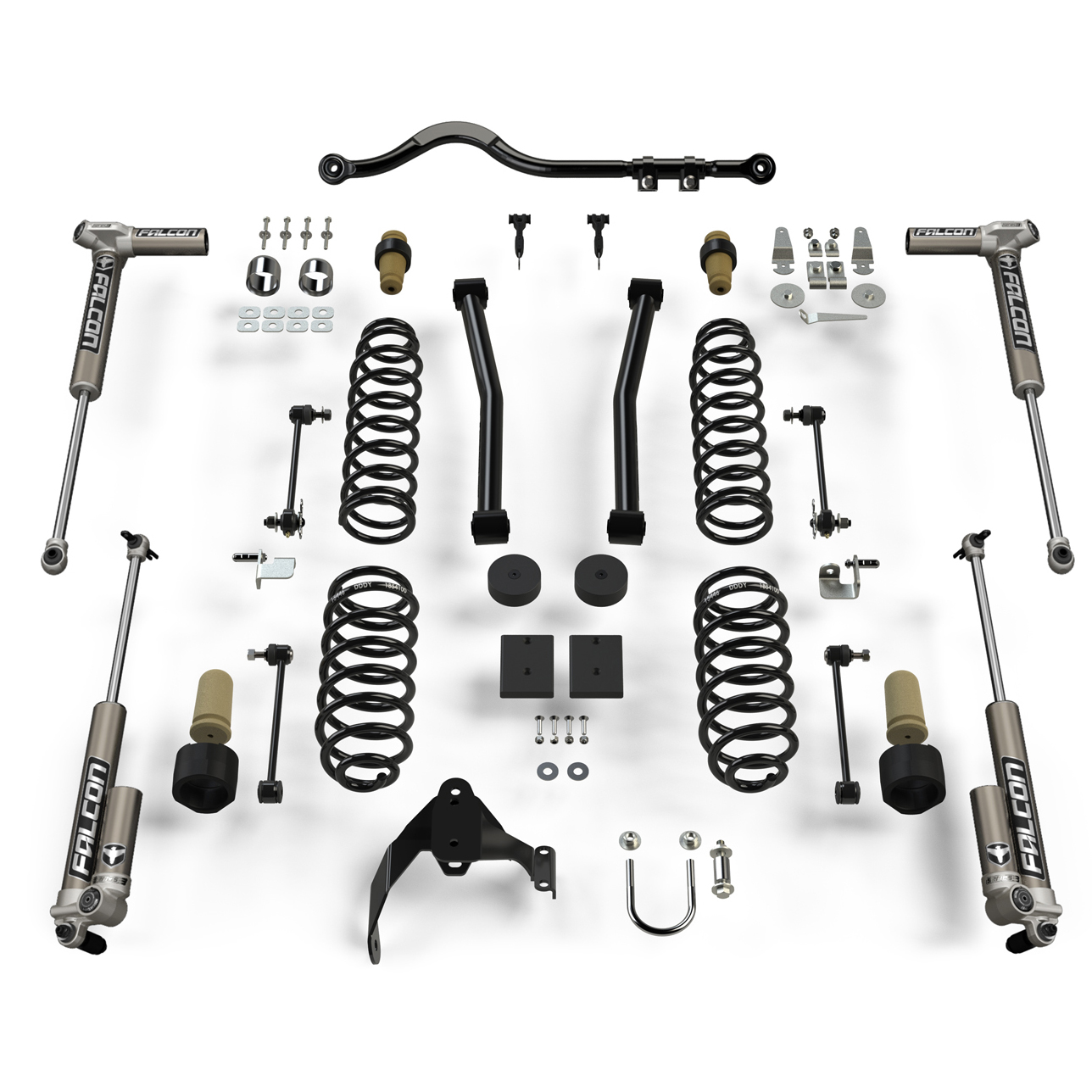

INCLUDES

• 2.5” Lift Coil Springs (JK2 Front: # 1853052 & JK2 Rear: # 1854052)

• Sport Control Arm Kit – Front Lower (2.5-3” Lift) (# 1252000)

• HD Forged Adjustable Front Track Bar (0-6” Lift) (# 1753418)

• Rear Track Bar Axle Bracket Kit (2.5” Lift) (# 1954776)

• Progressive Bump Stop Kit – Front & Rear (# 1958200)

• 8.5” Front Sway Bar Quick Disconnect Kit (0-2.5” Lift) (# 1753010)

• 10.75” Rear Sway Bar Link Kit (2.5” Lift) (# 1744500)

• Coil Spring Retainer Kit – Rear Upper (# 4951400)

• Coil Spring Retainer Kit – Rear Lower (# 4954300)

• Front Brake Line Anchor Kit (# 1101255)

• Rear Brake Line Relocation Kit (# 4304400)

• Exhaust Spacer Kit (# 2610000)

• All necessary hardware

• And more

• Falcon Series 3.1 Piggyback Shock Kit (1.5-2.5” Lift) (# 02-01-31-400-002)

VEHICLE FITMENT INFO

Specs:

• JK Wrangler (2-Door)

• Lift Height: 2.5”

• Max Tire Diameter: 35”

PRODUCT NOTES

• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels – NOT INCLUDED.

• Requires cutting.

• Requires longer shocks (NOT INCLUDED in base kit) – Falcon Performance Shocks recommended.

SPORT ST2 CONFIGURATIONS

JK 2-Door:

• w/ Falcon 3.3 Fast Adjust Piggyback Shocks (# 1212033)

• w/ Falcon 3.2 Adjustable Piggyback Shocks (# 1212032)

• w/ Falcon 3.1 Piggyback Shocks (# 1212031)

• w/ Falcon 2.1 Monotube Shocks (# 1212021)

• No Shocks (# 1212000)

JK 4-Door:

• w/ Falcon 3.3 Fast Adjust Piggyback Shocks (# 1312033)

• w/ Falcon 3.2 Adjustable Piggyback Shocks (# 1312032)

• w/ Falcon 3.1 Piggyback Shocks (# 1312031)

• w/ Falcon 2.1 Monotube Shocks (# 1312021)

• No Shocks (# 1312000)

INSTALL TIME

6 Hours
