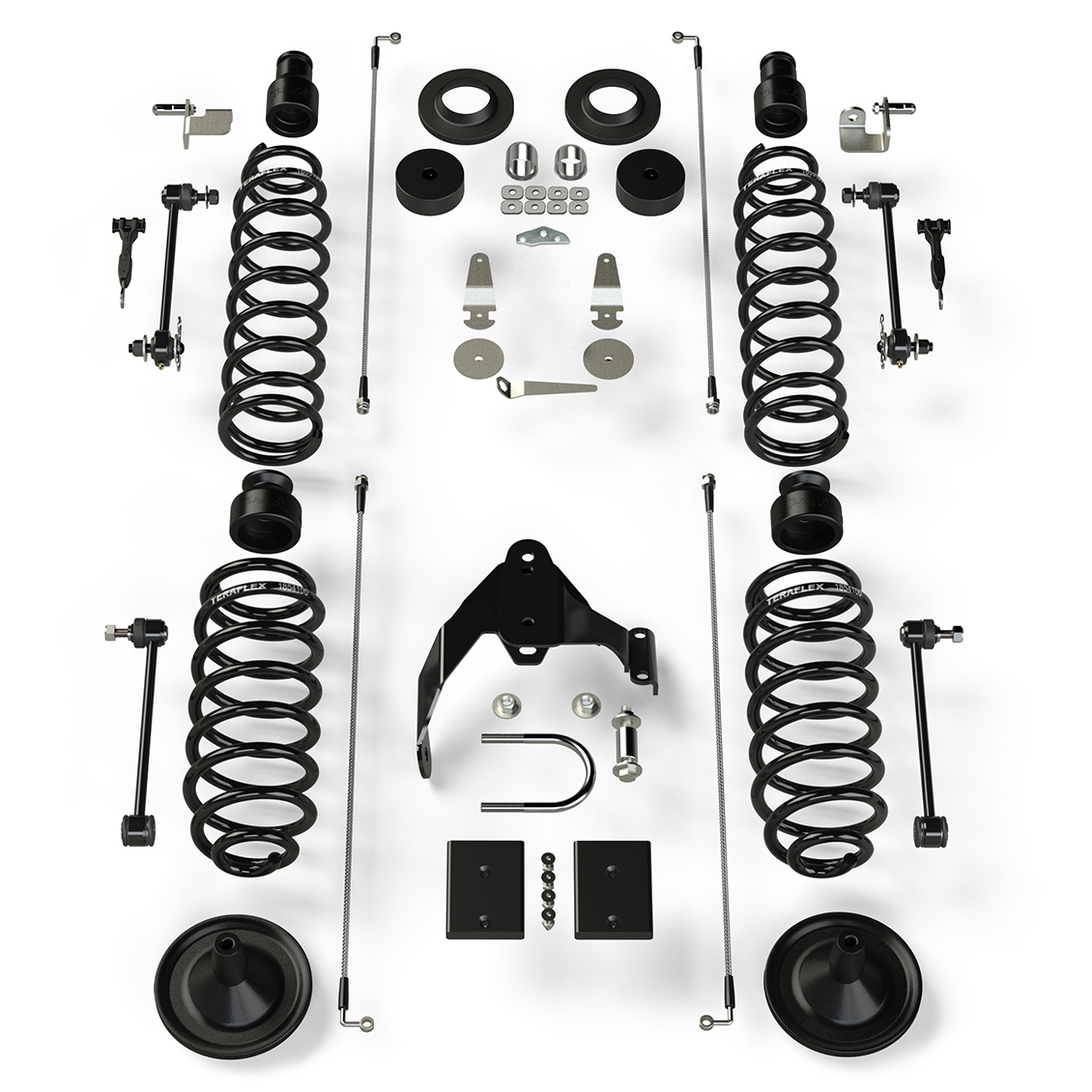

INCLUDES
• 4” Lift Coil Springs (JK4 Front: # 1853402 & JK4 Rear: # 1854402)
• 0.5″” Lift Coil Spring Spacers (Front x 2: 1953100 & Rear x 2: # 1954105)
• Front Track Bar Bracket Gusset (# 4951800)
• Rear Track Bar Axle Bracket Kit (3-6” Lift) (# 1954777)
• 2.75″” Bump Stop Extension Kit – Front Upper (# 1953800)
• 1.25” SpeedBump Bump Stop Strike Pad Kit – Front Lower (# 1467125)
• 2″” Bump Stop Extension Kit – Rear Upper (4-6” Lift) (# 1954802)
• 0.75” SpeedBump Bump Stop Strike Pad Kit – Rear Lower (# 1954600)
• 10” Front Sway Bar Quick Disconnect Kit (3-4” Lift) (# 1753000)
• 12.25” Rear Sway Bar Link Kit (3-4” Lift) (# 1754500)
• 26” Front Brake Line Kit – Stainless Steel Braided (# 4353310)
• 30” Rear Brake Line Kit – Stainless Steel Braided (# 4350310)
• Front Brake Line Anchor Kit (# 1101255)
• Exhaust Spacer Kit (# 2610000)
• All necessary hardware
• And more
VEHICLE FITMENT INFO
Specs:
• JK Wrangler Unlimited (4-Door)
• Lift Height: 4”
• Max Tire Diameter: 37”
PRODUCT NOTES
• Caster correction required – NOT INCLUDED.
• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels – NOT INCLUDED.
• We highly recommend driveshaft modifications. See the TeraFlex Rzeppa High-Angle CV Kit (# 1744014).
• Requires alignment.
• Requires longer shocks (NOT INCLUDED in base kit) – we recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks (# 1545200).
Proper suspension geometry ensures all stability controls function w/in factory parameters. The following components are recommended to optimize caster and pinion angles and restore factory steering and suspension geometry: adjustable 8-Arm Short Control Arm Kit (Alpine: # 1415610 or Alpine IR: # 1415611), or adjustable 8-Arm Long Control Arm & Bracket Kit (Alpine: # 1315010 or Alpine IR: # 1315011), and/or HD Forged Adjustable Front Track Bar (# 1753418), and/or HD Forged Adjustable Rear Track Bar (# 1754418).
CONFIGURATIONS
JK 2-Door:
4” Suspension System w/ 8 Alpine Short Control Arms
• w/ 9550 VSS Twin-Tube Shocks (# 1451403)
• No Shocks (# 1156403)
4” Coil Spring Base Lift Kit
• w/ 9550 VSS Twin-Tube Shocks (# 1251421)
• No Shocks (# 1151421)
JK 4-Door:
4” Suspension System w/ 8 Alpine Short Control Arms
• w/ 9550 VSS Twin-Tube Shocks (# 1451401)
• No Shocks (# 1156401)
4” Coil Spring Base Lift Kit
• w/ 9550 VSS Twin-Tube Shocks (# 1251401)
• No Shocks (# 1151401)
INSTALL TIME
8 Hours
