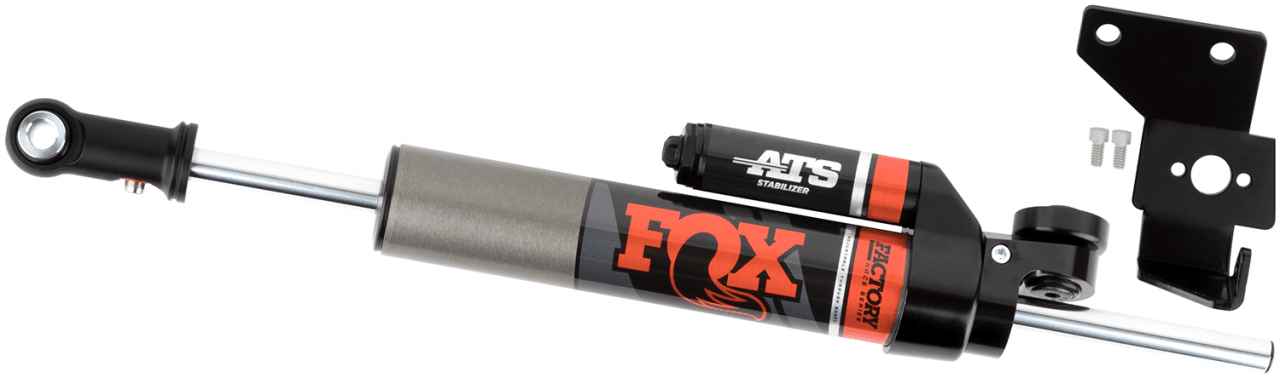

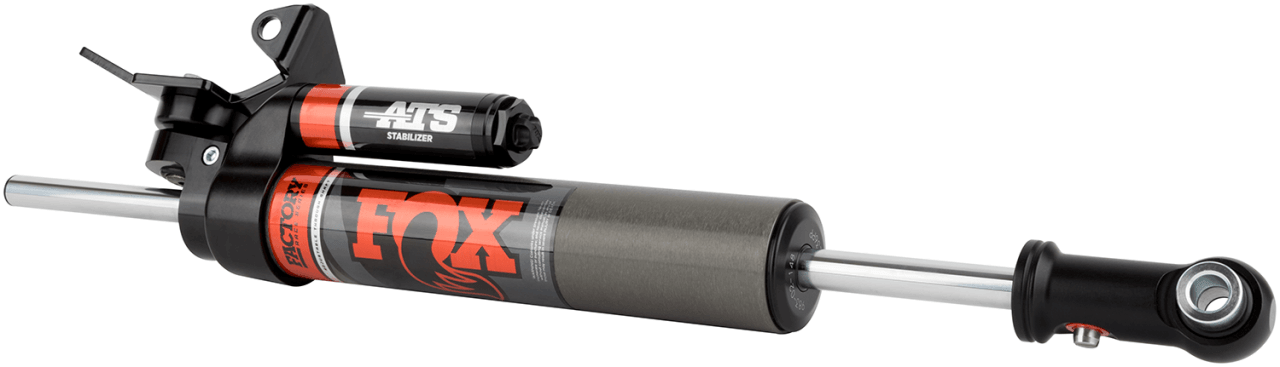

Fox® Racing Shox Factory Race Series 2.0 ATS Steering Stabilizer

Additional information

Smooth out the ride in your Jeep Wrangler JL and Gladiator JT with the Fox Racing Shox Factory Race Series 2.0 ATS Steering Stabilizer. This direct fit steering stabilizer features an external adjuster with twenty-four points of adjustment, allowing it to be fine-tuned to your driving style. Install is 100% bolt-on, so no cutting, drilling, or other modifications are required. To avoid cavitation and fade, the Factory Race Series 2.0 Series ATS Steering Stabilizer utilizes Fox’s IFP (Internal Floating Piston) design. The external reservoir keeps shock oil separate from the high-pressure nitrogen. Unlike most steering stabilizers, the ATS is neutrally charged, so it will not push or pull your steering.


Factory Race Series 2.0 ATS Steering Stabilizer Specs:

Shock Body Diameter: 2”

Shock Body Material: 6061-T6 Aluminum

Shock Body Finish: Clear Hard Anodized

Shock Component Material: 6061-T6 Aluminum

Shock Component Finish: Black Hard Anodized

Shaft Diameter: 5/8”

Shaft Material: Heat-Treated Steel Alloy

Shaft Finish: Hard Chrome Plating

Piston: Race-Developed High-Flow Design

Redundant Valve Seals: Main Seal, Wiper Seal, and Scraper Seal

Shock Oil: JM92 Advanced Suspension Fluid

Shock Gas: High Pressure Nitrogen

Bushing Material: Black Nitrile Rubber

Adjustable: 24 Clicks of Adjustability

Charge: Neutrally Charged

Extended Length: 23.20” (589.28mm)

Collapsed Length: 15.10” (383.54mm)

Travel: 8.10” (205.74mm)
